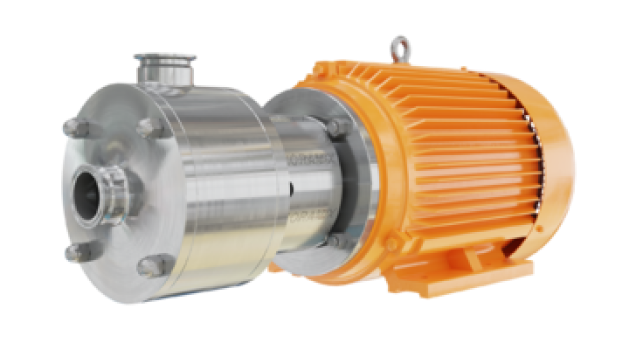

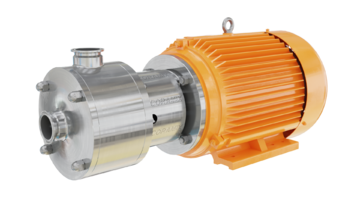

In-line mixers provide extremely intense mixing and can reduce mixing times by up to 90%. Emulsify, homogenize, solubilize, suspend, hydrate, disperse and disintegrate solids faster and better.
Self-pumping flow rates up to 400 gpm (1,500 lpm).
Interchangeable Workheads
Single stage rotor/stator configurations as standard. Stator options with holes or slots, each having various sizes.
Materials of Construction
Product contact parts in 316L stainless steel. Elastomers are FKM. Special materials available on request.
Motor Specification
Options for different voltages and construction types. TEFC (Total Enclosed Fan Cooled) IP55, washdown duty, and explosion proof motors are available as options.
Inlet and Outlet Connections
Sanitary clamp is standard (i.e. Tri-Clamp). Options for NPT, ANSI, and Camlock. All Coramix Mixers are designed for cleaning-in-place (CIP and SIP).
